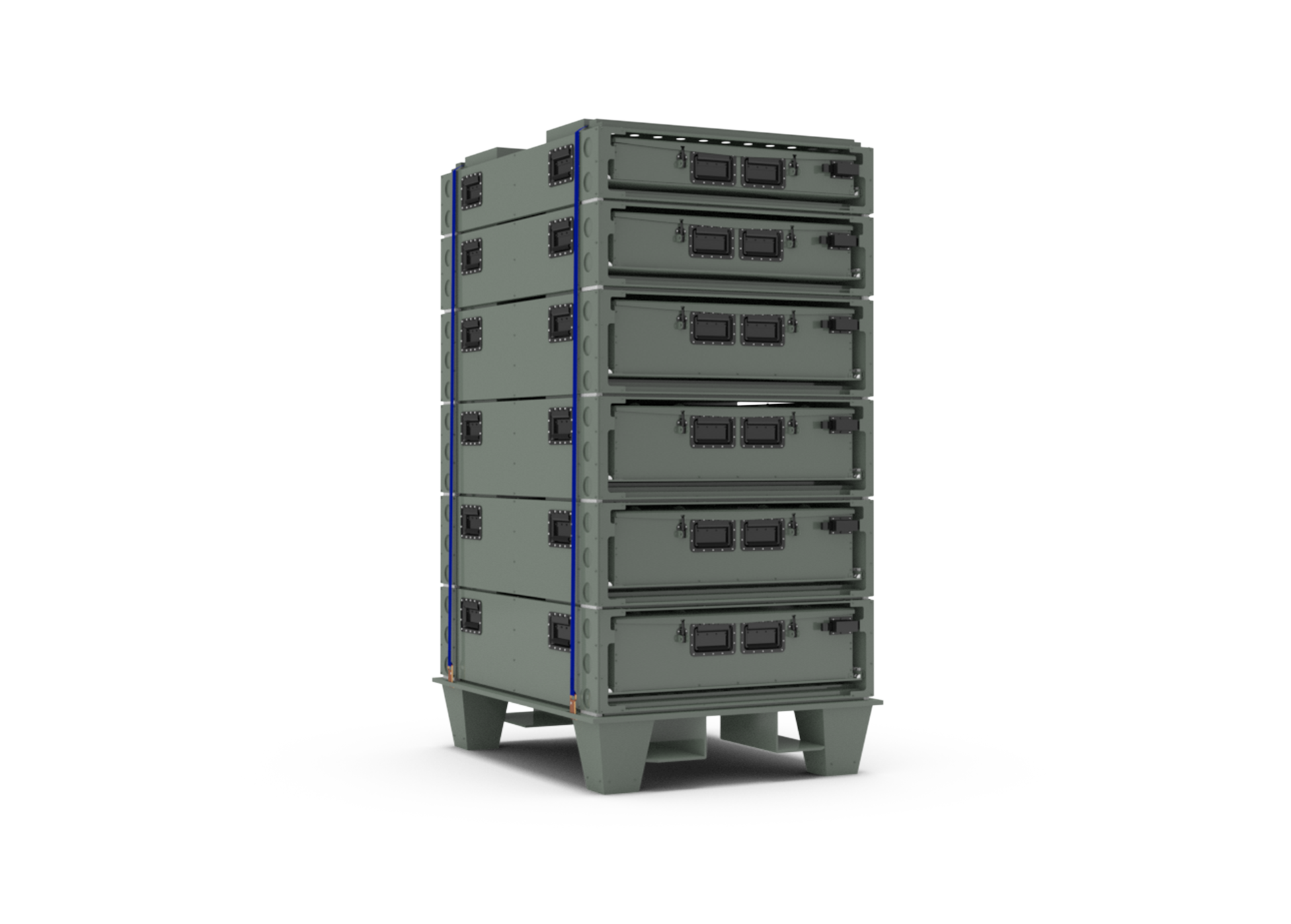

Portable Drawer Module #4

The FPU® Portable Drawer Module (PDM) #4 is an all-steel expeditionary drawer storage system that is configurable to meet ever changing mission requirements. The PDM #4 consists of six drawer cases with drawers secured to the PDM base plate with ratchet straps which is designed to be interchangeable with compatible BOH containers.




Part Number

Request a Quote

Available in 4 Configurations

The PDM is made entirely out of steel and is available in four configurations. The PDM consists of skeletal cases of various sizes, a pallet base, drawer trays that slide, and drawer divider sets for small to large material storage configurations. The PDM cases nest on top of one another and are fixed to the PDM Base Plate with ratchet straps. The ratchet straps can be removed and the PDM cases can be assembled by hand into any configuration that best suits your mission.



The PDM drawers can be completely removed from the PDM case allowing you to take only the material you need. The PDM drawers come with a standard set of drawer dividers and an attached water-resistant lid to protect your material while in the field.


  • Single position FPU® Module compatible with the FPU-8, FPU-20-2, FPU-20-3 with Removable Cradle and BOH Adapters for TRICON I/II and QUADCON containers
  • 6 PDM cases with 6 hand removable drawers ( 4”, 6”, 8”, 8”, 8”, 8”)
  • 128 standard storage compartments
  • Expandable to 248 compartments with additional divider sets
  • PDM can be completely disassembled and moved by hand
  • Integrated with BOH’s quick connect / discount twist-locking system

Product Includes

  • 1 ea FPU® PDM Base Plate with Straps
  • 1 ea 4″ PDM Case with Removable Drawer with Dividers
  • 1 ea 6″ PDM Case with Removable Drawer with Dividers
  • 4 ea 8″ PDM Case with Removable Drawer with Dividers


Height 74″
Length 35″
Width 43″


Tare 1,240 lbs.
Maximum Gross 1,840 lbs.
Net 600 lbs.
