FPU® Short Helo Module

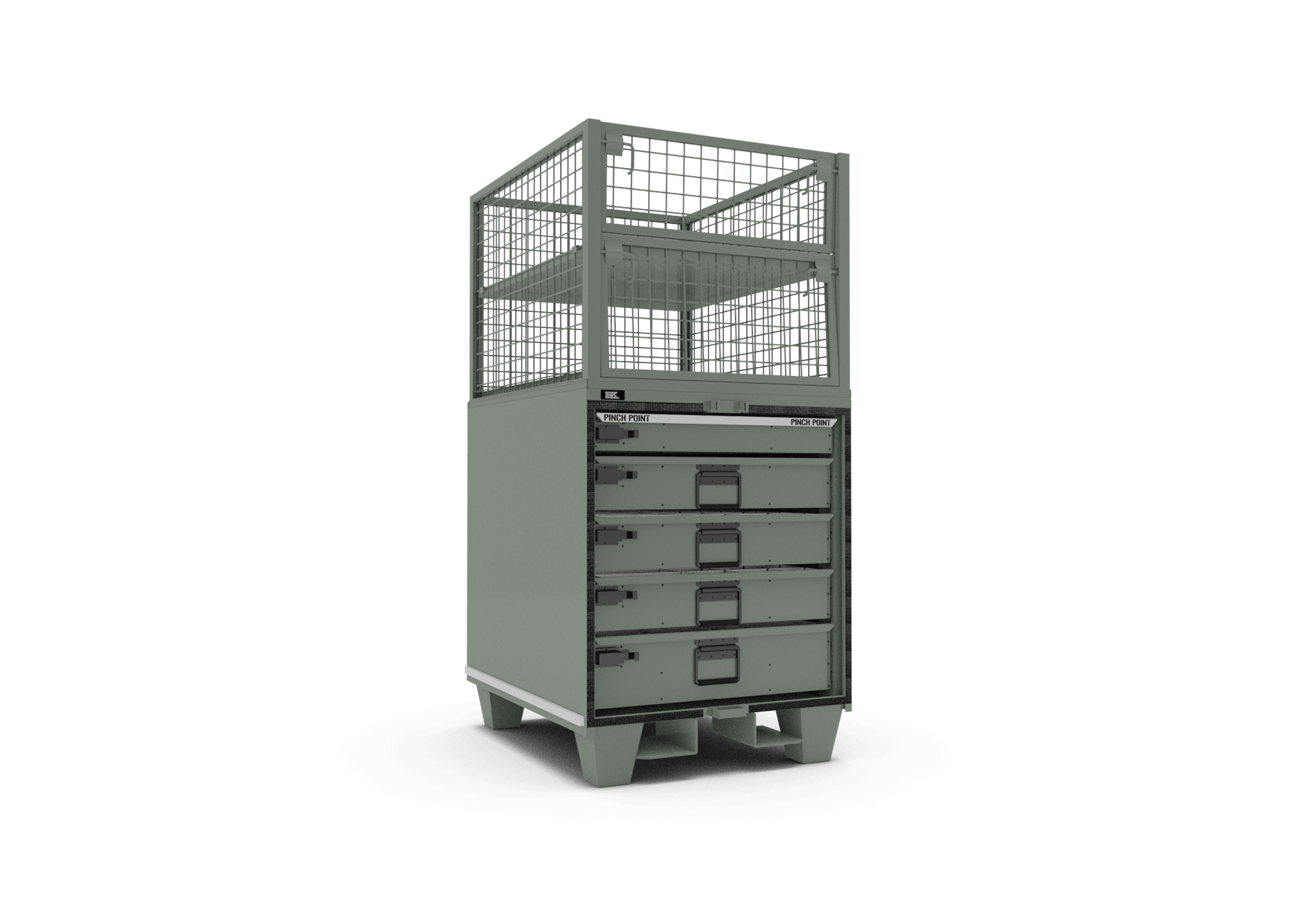

The Short Helo Module is an all-steel expeditionary storage cabinet that is mission scalable, multi-class capable and always uploaded and ready to move. The Short Helo Module is designed to be interchangeable with compatible BOH containers and adapters or to be broken down into two parts to be transported by helicopter.




Part Number

Request a Quote


  • Single position FPU® Module compatible with the FPU-8, FPU-20-2, FPU-20-3 with Removable Cradle and BOH Adapters for TRICON I/II and QUADCN containers
  • 5 Drawers (4″, 6″, 6″, 6″, 8”) with standard divider sets
  • 138 standard storage compartments
  • Expandable to 462 compartments with additional divider sets
  • Hand removable top cage
  • High security 3-G locking bar that accommodates 5200 and 5300 series locks

Product Includes

  • 1 ea Short FPU® Module Cabinet with Security Bar, Dust Cover and Top Mounted Cage
  • 1 ea 4″ Drawer with Dividers and Removable Lid
  • 3 ea 6″ Drawer with Dividers
  • 1 ea 8″ Drawer with Dividers


FPU® Short Helo Module User Manual


Height 74"
Length 35″
Width 43″


Tare 919 lbs
Maximum Gross 1,619 lbs
Net 700 lbs
